LabDataStorageEvaluation
A reproducible pipeline that answers one practical question: which storage format should a materials-science laboratory use for its measurement data?
The pipeline simulates a tribology laboratory (Pt-Au LDRD context, Sandia National Laboratories), generates ~150 MB of physically plausible raw measurement data in CSV, converts the corpus into four additional storage formats, benchmarks seven laboratory-standard retrieval scenarios against all five formats, extrapolates the measurements to 600 GB - 6 TB, and produces a ranked decision report for five laboratory use cases: analysis, reporting, search/filtering, archiving, and inter-lab exchange.
Results - interactive, single-file HTML (open in a browser or download and share):
- Storage Decision - one-page executive summary: the problem, the verdict (relational vs graph database), and what it costs - written for management, every claim linked to the full study (source: docs/research/Tribology_Storage_Decision.html).
- Storage Format Evaluation - the full study results: dashboard, measured matrix, projections to 6 TB, hardware bill of materials, weighted scoring and verdict (source: docs/research/Tribology_Storage_Evaluation.html).
- Foreign-Key Architecture Study - the measured key-schema study behind the relational design decision (source: docs/research/Tribology_FK_Architecture.html).
Reference documents:
- Task specifications: docs/specs/ (plan + tasks 01-11).
- Binding conventions: docs/rules/ and CLAUDE.md.
- Full decision report (markdown): out/report/REPORT.md.
Goals
- Define a simulated tribology laboratory with real instruments and a realistic test workflow.
- Generate ~150 MB of physically plausible measurement data in CSV (the
canonical raw format), deterministically from seed
20260711. - Convert the CSV corpus into 4 target storage formats: JSON-LD, SQLite (optimized), PostgreSQL 16 (indexed + partitioned), RDF triplestore.
- Benchmark 7 retrieval scenarios (Q1-Q7) against all 5 formats, measuring wall time, peak RAM, CPU utilization, disk I/O, and disk footprint.
- Extrapolate measured results to 600 GB / 1.2 TB / 6 TB with complexity-aware scaling models.
- Produce summary tables, charts, and a weighted scoreboard that rank the formats per use case.
Pipeline
flowchart TD
T01[01_lab_configuration] --> T02[02_process_flow_diagrams]
T01 --> T03[03_csv_data_generation]
T03 --> T04[04_convert_json]
T03 --> T05[05_convert_sqlite]
T03 --> T06[06_convert_postgresql]
T03 --> T07[07_convert_rdf]
T04 --> T08[08_benchmark_queries]
T05 --> T08
T06 --> T08
T07 --> T08
T03 --> T08
T08 --> T09[09_benchmark_execution]
T09 --> T10[10_extrapolation_model]
T10 --> T11[11_reporting]
T09 --> T11
Execution order: 01 -> 02 -> 03 -> (04 | 05 | 06 | 07) -> 08 -> 09 -> 10 -> 11.
Tasks 04-07 are independent and may run in parallel; task 09 requires a quiet
machine (no parallel work). Every task writes a completion marker
./out/.done/<NN>.ok and validates its dependencies' markers before starting.
| Task | Script | Main output | Status |
|---|---|---|---|
| 01 Lab configuration | make_lab_config.py |
out/config/lab_config.yaml |
implemented |
| 02 Process flow diagrams | make_process_flow.py |
out/report/process_flow.md, out/report/diagrams/ |
implemented |
| 03 CSV data generation | generate_data.py |
out/csv/ tree + MANIFEST.csv |
implemented |
| 04 Convert to JSON-LD | convert_json.py |
out/json/full/, out/json/hybrid/dataset.jsonld |
implemented |
| 05 Convert to SQLite | convert_sqlite.py |
out/sqlite/tribo.db |
implemented |
| 06 Convert to PostgreSQL | convert_postgresql.py |
live PostgreSQL DB (+ dump when pg_dump is available) | implemented |
| 07 Convert to RDF | convert_rdf.py |
out/rdf/dataset.nt.gz, dataset.ttl, oxigraph store |
implemented |
| 08 Benchmark queries | make_queries.py |
out/bench/queries/, out/bench/expected/ |
implemented |
| 09 Benchmark execution | bench_runner.py |
out/bench/results_raw.csv, results_median.csv |
implemented |
| 10 Extrapolation | extrapolate.py |
out/bench/extrapolation.csv, hardware_sizing.csv |
implemented |
| 11 Reporting | report.py |
out/report/REPORT.md, charts, tables |
implemented |
The simulated laboratory
Ti-6Al-4V coupons (10 x 10 x 3 mm) with a sputtered Cr adhesion layer and a Pt-Au coating deposited as a composition gradient (film thickness 0.3-1.1 um). Four deposition batches (B721-B724) vary gun tilt, power, and discharge voltage. Instruments: RAPID 6-probe tribometer (friction), Bruker TI980 (nanoindentation), Bruker M4 Tornado micro-XRF (composition), Kurt J. Lesker PVD 200 (deposition), AFM (roughness), optical profilometry (thickness), SIMTRA (sputter transport simulation).
flowchart LR
B[Batch x4] --> W[Wafer x3 per batch]
W --> C[Coupon x49 per wafer, 7x7 grid]
C --> X[xrf_map: 400 points]
C --> N[nanoindentation: 25 indents]
C --> A[afm: Ra / Rq]
C --> P[profilometry: 100 points]
C --> T[Track x3, friction coupons only]
T --> CY[cof_vs_cycle: 1000 cycles]
T --> L[friction_loops: 10 x 200 points]
T --> WR[wear: 1 row]
| Entity | Count |
|---|---|
| Batches | 4 |
| Wafers | 12 |
| Coupons | 588 (480 friction-tested + 108 reserve/QA) |
| Tracks | 1,440 |
| Friction cycle rows | 1,440,000 |
| Friction loop points | 2,880,000 |
| XRF map points | 235,200 |
Friction runs R1/R2 execute in Lab Air, R3/R4 in Dry N2. Generated values follow explicit physical models (COF run-in exponential, steady-state COF and hardness vs Au content, Archard wear), so benchmark queries return physically meaningful results.
Storage formats under evaluation
| # | Format | Role in the comparison |
|---|---|---|
| 1 | CSV (raw tree) | Canonical instrument output; baseline |
| 2 | JSON-LD (full + hybrid) | Ontology-annotated exchange format (FAIR) |
| 3 | SQLite | Single-file relational, optimized for size and speed |
| 4 | PostgreSQL 16 | Production relational: indexed, partitioned |
| 5 | RDF triplestore (oxigraph) | Semantic-web store queried via SPARQL |
Benchmark scenarios (Q1-Q7)
| ID | Scenario | Access pattern |
|---|---|---|
| Q1 | COF vs cycle curve for one track | Point read |
| Q2 | Steady-state COF for coupons with mean Au = 10 +/- 0.5 wt% | Indexed filter |
| Q3 | Hardness vs steady-state COF across all batches | Indexed join |
| Q4 | Tracks in Dry N2, 100 mN, cof_ss > 0.20 (anomaly filter) | Indexed filter |
| Q5 | Mean run-in cycles per batch over ALL raw cycle rows | Forced full scan |
| Q6 | Wear volume vs load per coupon | Indexed join |
| Q7 | Stribeck-style mean COF by (environment, speed-load bucket) | Full aggregation |
Protocol: every cell (format x query) runs in its own subprocess; 1 warm-up +
3 measured runs; randomized cell order; 30-minute hard timeout recorded as
TIMEOUT; every result validated against a canonical checksum before the
measurement counts. See
docs/rules/bench-methodology.md.
Repository layout
docs/
Initial_Prompt.md the generative prompt behind specs 00-11 (provenance, non-binding)
specs/ task specifications 00-11 (WHAT to build)
rules/ binding conventions (HOW work is done)
research/ measured design studies and interactive result pages
out/ ALL generated artifacts (reproducible; bulk git-ignored,
report/ config/ .done/ committed - see .gitignore):
config/ csv/ json/ sqlite/ pg/ rdf/ bench/ report/ .done/
common/ shared helpers (storage_sizes.csv contract, ...)
queries/ Q1-Q7 implementations for csv / json / rdf formats
make_lab_config.py task 01 entry script (one script per task, repo root)
make_process_flow.py task 02 entry script
generate_data.py task 03 entry script
convert_json.py task 04 entry script
convert_sqlite.py task 05 entry script
convert_postgresql.py task 06 entry script (TRIBO_PG_DSN, TRIBO_PROM_URL)
convert_rdf.py task 07 entry script
make_queries.py task 08 entry script (canonical results need TRIBO_PG_DSN)
bench_runner.py task 09 entry script (TRIBO_PG_DSN, TRIBO_PROM_URL)
extrapolate.py task 10 entry script (seeds editable out/config/hw_prices.yaml)
report.py task 11 entry script (REPORT.md, charts, tables, scoring)
requirements.txt closed dependency list (docs/rules/code-python-style.md)
The bulk of the out/ tree - the ~150 MB CSV corpus, the JSON-LD variants,
databases, stores, archives, and raw benchmark data - is excluded from
git; every artifact regenerates deterministically from the specs, the
rules, and the code. A curated results subset IS committed (decision of
2026-07-11): out/report/ (REPORT.md, charts, tables, diagrams),
out/config/ (lab_config.yaml, hw_prices.yaml), and the out/.done/
markers - see .gitignore. docs/Initial_Prompt.md
is the original prompt the 12 specification files were generated from - kept
for provenance only, never authoritative: where it disagrees with the specs,
rules, or code (e.g. the SQLite key schema, the JSON-LD vocabulary), those win.
Getting started
Prerequisites: Python 3.11+ (3.12 tested). PostgreSQL 16 is required only for
tasks 06/08/09; its DSN comes from the TRIBO_PG_DSN environment variable
(default postgresql://postgres@localhost:5432/tribo).
Windows (PowerShell):
py -3 -m venv .venv
.venv\Scripts\python -m pip install -r requirements.txt
.venv\Scripts\python make_lab_config.py
Linux:
python3 -m venv .venv
.venv/bin/python -m pip install -r requirements.txt
.venv/bin/python make_lab_config.py
Each task script supports --log-level {DEBUG,INFO,WARNING,ERROR} and prints
its protocol output (paths, counts, sizes) to stdout. A task refuses to run if
a dependency's out/.done/<NN>.ok marker is missing.
Note on cold-cache runs: the page-cache drop used by the cold-cache benchmark pass is Linux-only; on Windows hosts that pass is skipped and marked as such. Benchmark execution is planned for a dedicated Linux host.
Results
Results of the full pipeline run of 2026-07-11 (seed 20260711, 141.8 MiB
corpus, all 35 benchmark cells checksum-valid). The generated sources of
truth are committed under out/report/ - the full decision
document is out/report/REPORT.md; the tables below
are copied from it. An interactive single-file companion (sidebar
navigation, per-query and per-scale views, cost explorer) is
docs/research/Tribology_Storage_Evaluation.html.
Bulk measurement files (out/bench/) are git-ignored and regenerable.
Process flow diagrams (task 02)
out/report/process_flow.md with out/report/diagrams/D1..D6.mermaid:
D1 coupon assembly, D2 characterization and batch assembly, D3 testing tree,
D4 tribometer session sequence, D5 execution loop, D6 data hierarchy.
Measured results (task 09)

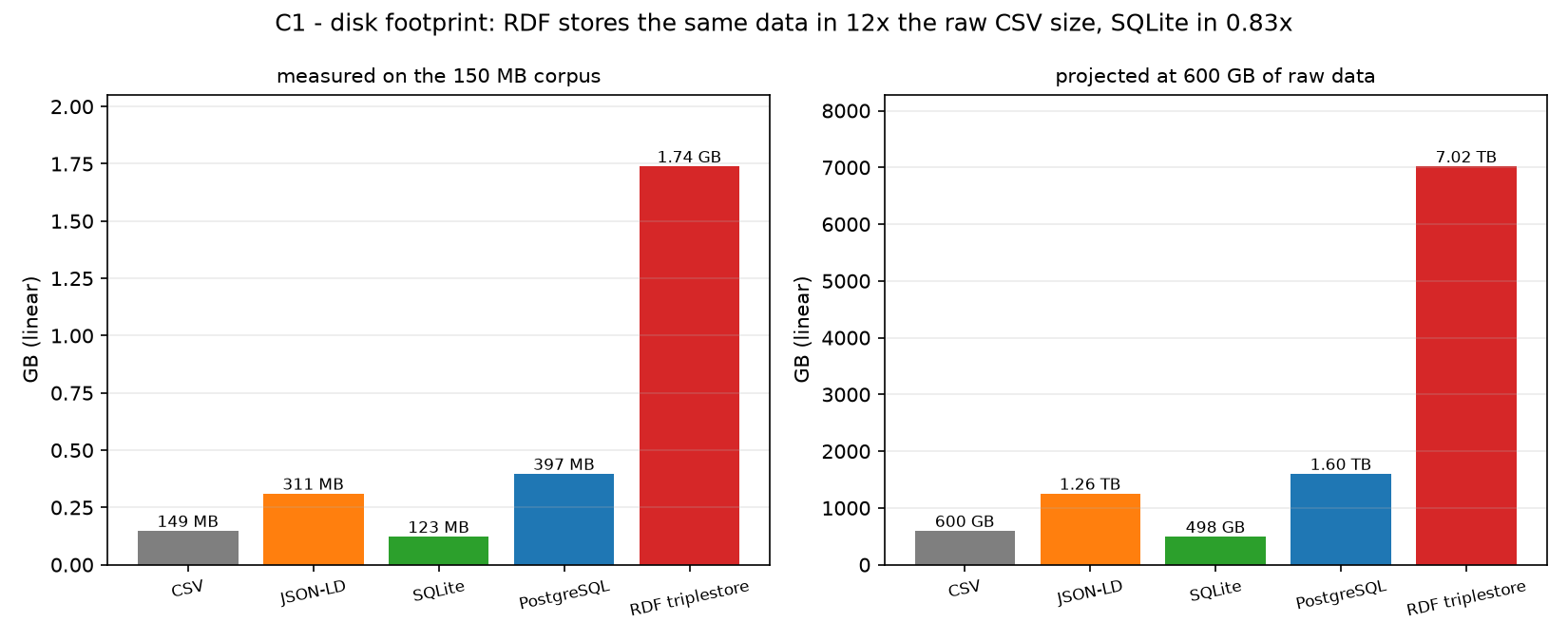

Storage footprint per format (working + compressed archival):
| Format | Measured | vs CSV | Archival (compressed) |
|---|---|---|---|
| CSV | 149 MB | 1.00x | 52.8 MB (tar.gz) |
| JSON-LD (full) | 311 MB | 2.09x | 57.2 MB (tar.gz) |
| SQLite | 123 MB | 0.83x | 55.1 MB (gzip) |
| PostgreSQL | 397 MB | 2.67x | 53.1 MB (pg_dump -Fc) |
| RDF triplestore | 1.74 GB | 11.70x | 126 MB (nt.gz) |

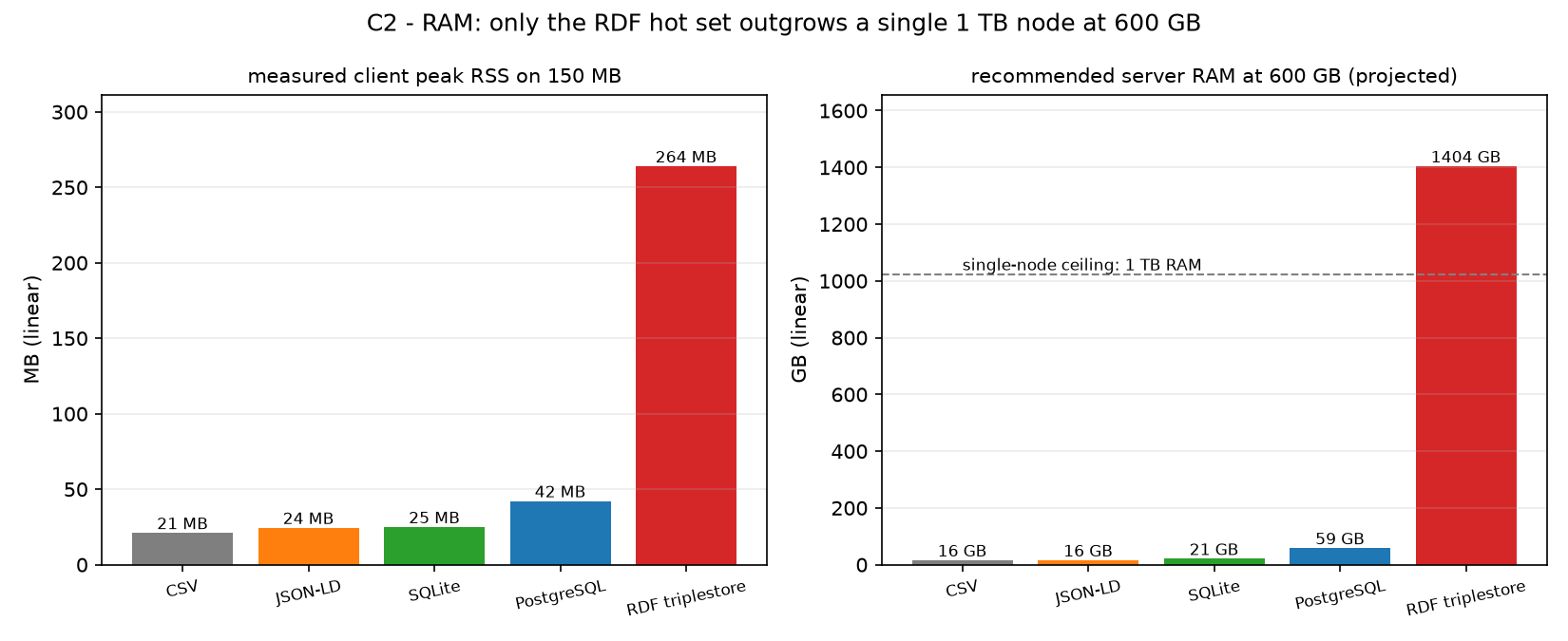

Median wall time on the 150 MB corpus, warm cache (peak RAM / CPU / read bytes: out/report/tables/t2_measured_medians.csv):
| Format | Q1 | Q2 | Q3 | Q4 | Q5 | Q6 | Q7 |
|---|---|---|---|---|---|---|---|
| CSV | 0.06 s | 0.17 s | 1.15 s | 0.72 s | 1.09 s | 0.28 s | 1.27 s |
| JSON-LD | 0.11 s | 1.48 s | 9.9 s | 9.9 s | 10 s | 9.8 s | 10 s |
| SQLite | 0.06 s | 0.06 s | 0.11 s | 0.06 s | 0.77 s | 0.06 s | 0.71 s |
| PostgreSQL | 0.22 s | 0.22 s | 0.22 s | 0.22 s | 0.44 s | 0.22 s | 0.33 s |
| RDF triplestore | 0.11 s | 2.81 s | 46 s | 20 s | 60 s | 0.17 s | 41 s |

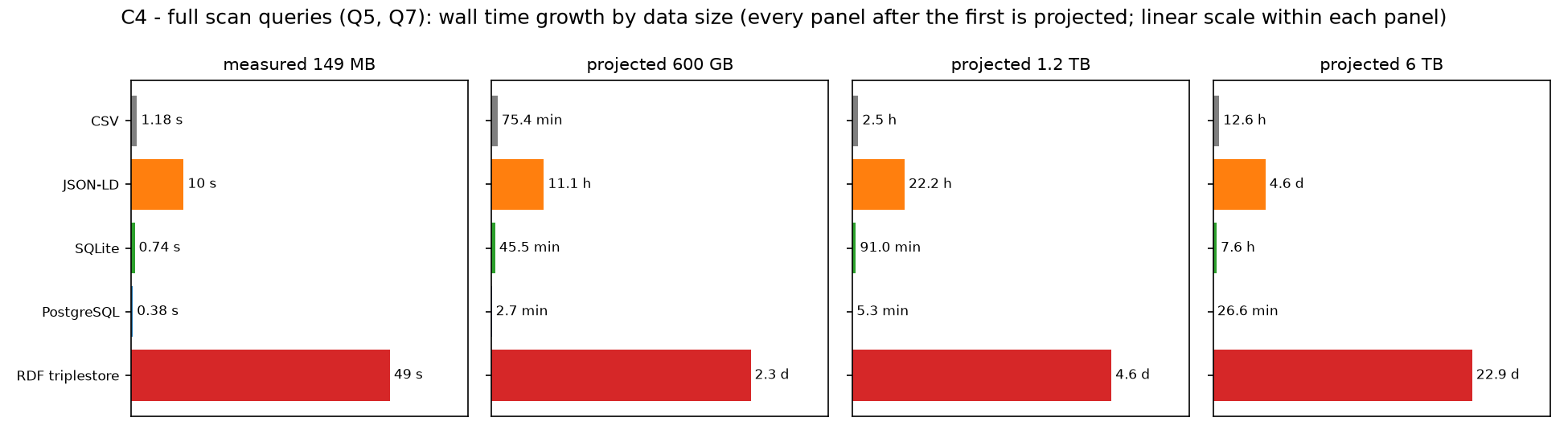

Projections (task 10)
Projected wall times at 600 GB - (!) = IMPRACTICAL (over 1 hour),
FAIL = over 24 hours; 1.2 TB and 6 TB scales:
out/report/tables/t3_projected_600gb.csv
and out/bench/extrapolation.csv:
| Format | Q1 | Q2 | Q3 | Q4 | Q5 | Q6 | Q7 |
|---|---|---|---|---|---|---|---|
| CSV | 0.06 s | 7.1 min | 1.2 h (!) | 44 min | 1.2 h (!) | 15 min | 1.4 h (!) |
| JSON-LD | 0.11 s | 1.5 h (!) | 11 h (!) | 11 h (!) | 11 h (!) | 10.9 h (!) | 11.2 h (!) |
| SQLite | 0.06 s | 1.3 s | 5.7 min | 0.06 s | 47 min | 5.2 s | 44 min |
| PostgreSQL | 0.22 s | 0.22 s | 3.4 s | 11 s | 3.7 min | 4.1 s | 1.9 min |
| RDF triplestore | 0.11 s | 3.0 h (!) | 2.1 d FAIL | 22 h (!) | 2.8 d FAIL | 5.9 min | 1.9 d FAIL |

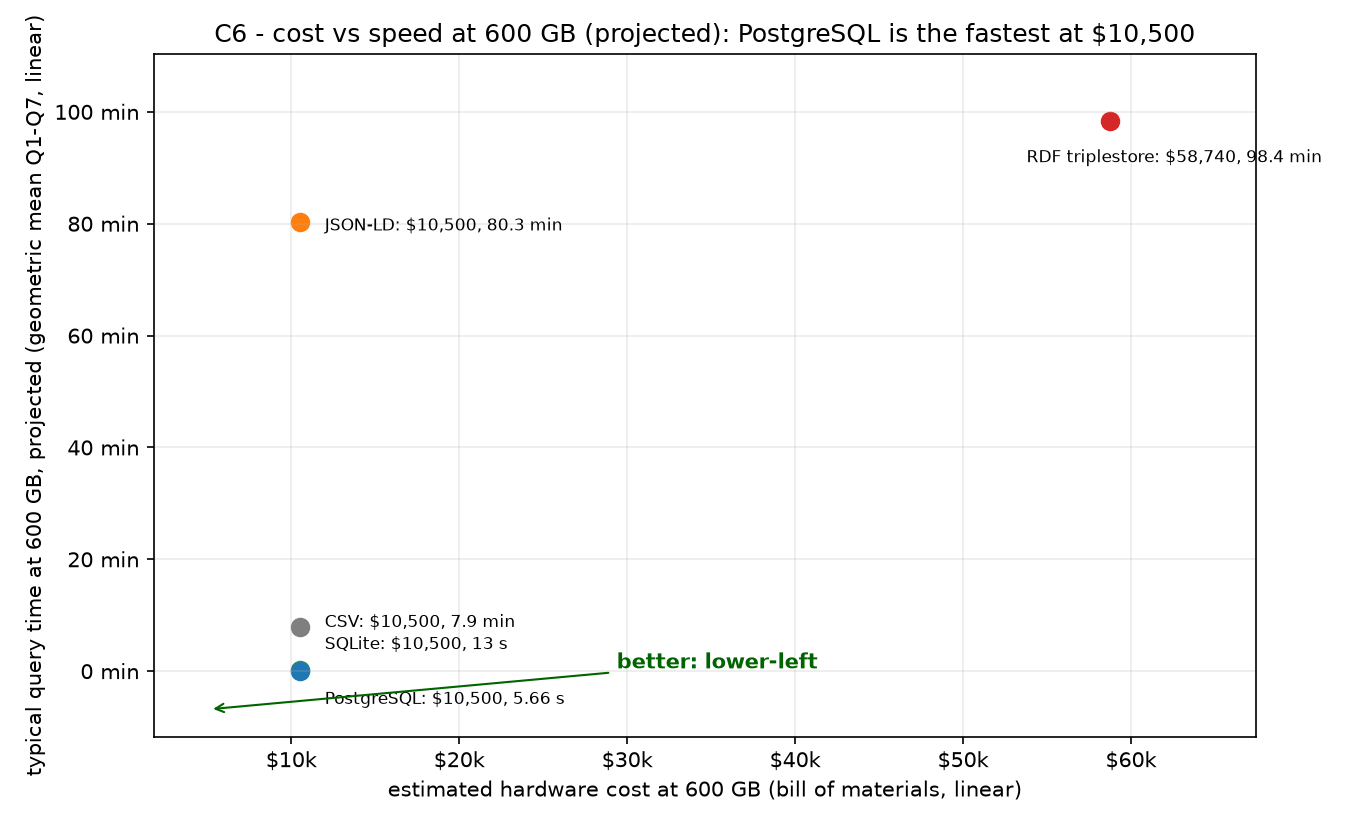

Hardware sizing at 600 GB - bill of materials with street prices as of 2026-07-11 (component sources: REPORT.md section 7 and out/config/hw_prices.yaml):
| Format | Configuration | Total |
|---|---|---|
| CSV, JSON-LD, SQLite, PostgreSQL (each) | 1 x 1U Supermicro AS-1015CS-TNR (16 cores); 1 x 64 GB DDR5 ECC RDIMM ($1,887); 1 x 7.68 TB NVMe U.2 ($3,995) | $10,500 |
| RDF triplestore | 2 nodes; 22 x 64 GB DDR5 ECC RDIMM; 2 x 7.68 TB NVMe U.2 | $58,740 |
At 6 TB PostgreSQL still fits one 16-core node - 9 RDIMM modules, 3 NVMe
drives, $33,586; the RDF triplestore needs 14 nodes and $527,732
(projected; full table: out/bench/hardware_sizing.csv).

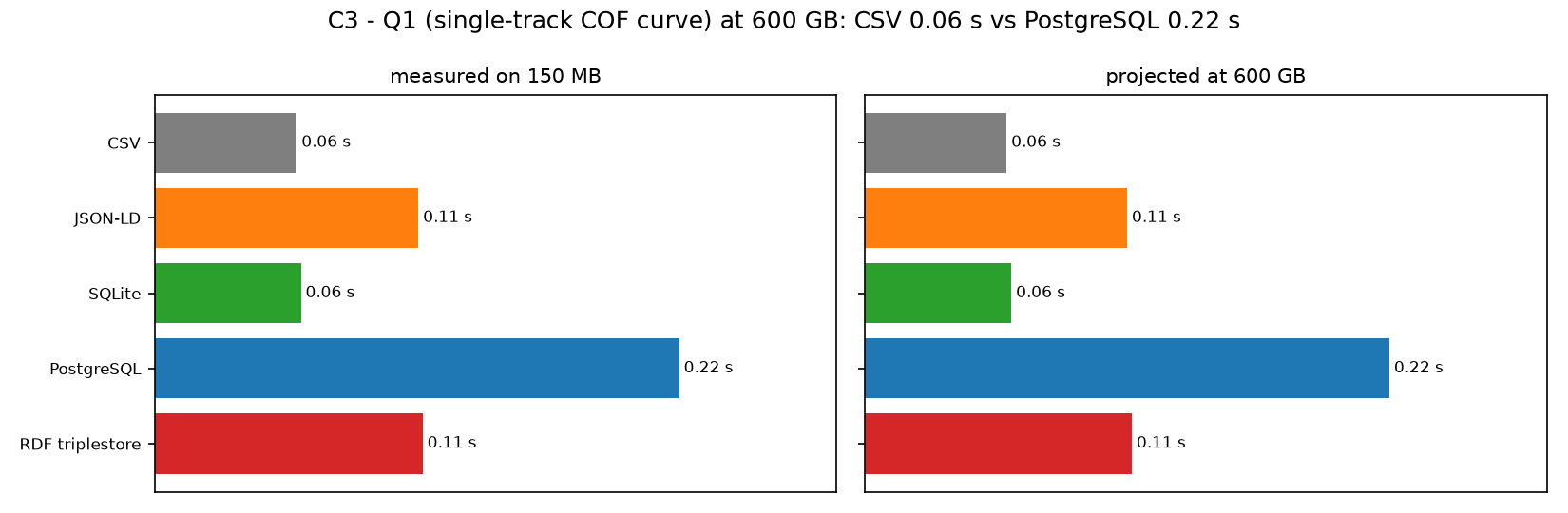

Charts (task 11)
(Task 11 writes the charts to out/report/charts/ under exactly these
names; c3 covers all seven queries - c3_q1..q7_wall_time.png - and c4 has
three query classes: point_read, indexed, full_scan.)

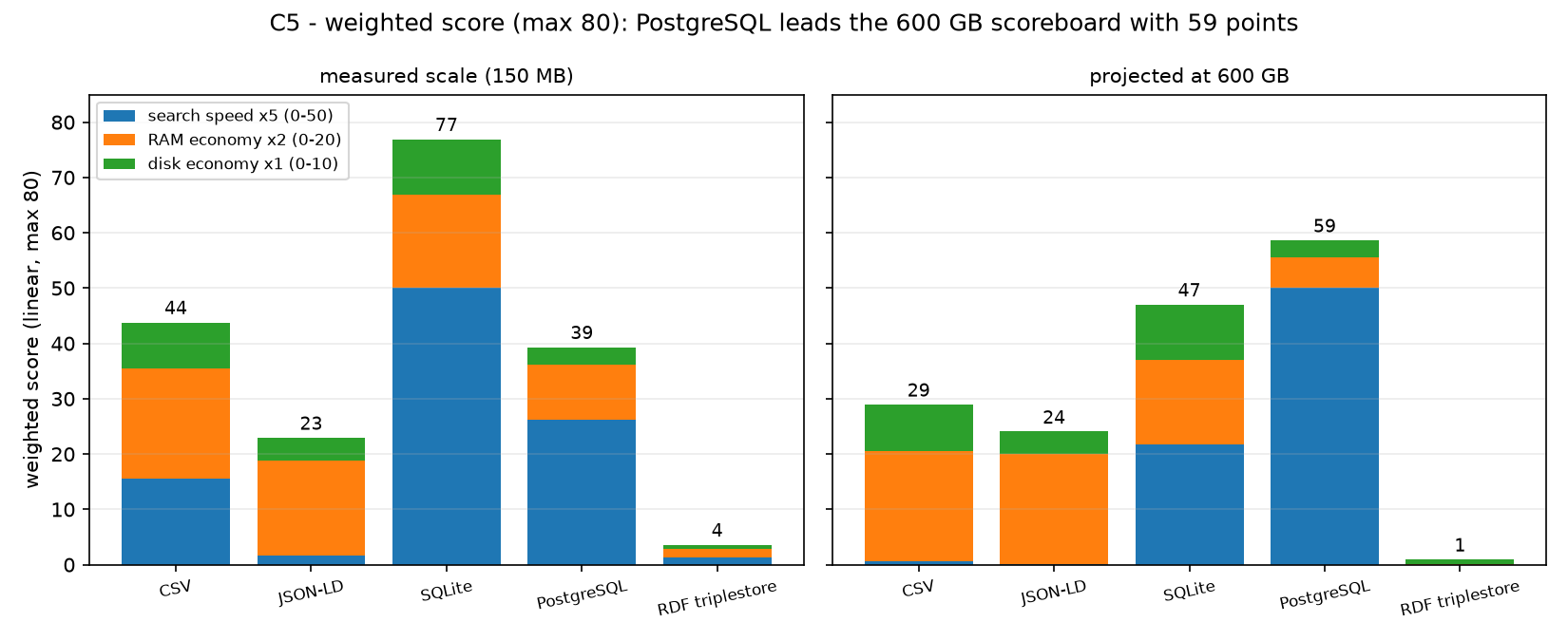

Final scoreboard (task 11)
Weighted scoring, max 80 points: search speed x5 (0-50), RAM economy x2
(0-20), disk economy x1 (0-10); a FAIL projection at 600 GB zeroes the
search subscore. Values below are the projected-600 GB scoreboard from the
2026-07-11 pipeline run (seed 20260711); the generated source of truth is
out/report/tables/t5_weighted_scores.csv, and REPORT.md also carries the
measured-scale scoreboard.
| Format | Search (0-50) | RAM (0-20) | Disk (0-10) | Total (0-80) |
|---|---|---|---|---|
| CSV | 0.6 | 20.0 | 8.3 | 28.9 |
| JSON-LD | 0.1 | 20.0 | 4.0 | 24.0 |
| SQLite | 21.8 | 15.2 | 10.0 | 47.0 |
| PostgreSQL | 50.0 | 5.5 | 3.1 | 58.6 |
| RDF | 0.0 | 0.2 | 0.7 | 0.9 |
| Use case | Recommended format |
|---|---|
| Analysis | PostgreSQL (SQLite acceptable single-user up to ~600 GB) |
| Report generation | PostgreSQL (track_summary materialized view) |
| Search / filtering | PostgreSQL or SQLite (indexed) |
| Archiving | CSV tree + tar.gz, plus pg_dump of the system of record |
| Inter-lab exchange | Hybrid JSON-LD (metadata + sourceFile links to CSV) |
Conventions
- IDs:
batch:B721,wafer:B721-W1,coupon:B721-W1-C07,track:B721-W1-C07-T2, runsR1..R4. - Timestamps: ISO-8601 UTC; all corpus timestamps are simulated.
- Units are explicit ASCII suffixes in column names (
_mN,_um,_GPa,_wtpct,_nm). - Random seed
20260711, read fromlab_config.yaml; regeneration is byte-identical (proof:MANIFEST.csvsha256). - Python: tabs for indentation; closed dependency list; streaming discipline (the corpus never fits in memory by design).
